Frame controller

Product Description:

Model: ZDYZ-Z (B) Support Controller is mainly used for support control, and can be matched with a driver to achieve the following support actions. It can be matched with pressure, stroke, tilt angle sensors, infrared sensors and other devices, and can be networked with other controllers on the working face to achieve single action, group and automatic control of the working face support. Its characteristics are: ① The product can independently achieve 16 function support control, and is also suitable for intelligent control of other devices; ② The product can be matched with a driver to control support actions below 86 functions, suitable for use in high mining sequence coal seam support and top coal caving support; ③ The product is equipped with a press plate, display screen, indicator light and buzzer, WIFI6, Zigbee Bluetooth, remote control, etc. have the characteristics of multiple control functions, strong compatibility and intelligence, independent system research and development, customizable functions, stable functions, and high reliability.

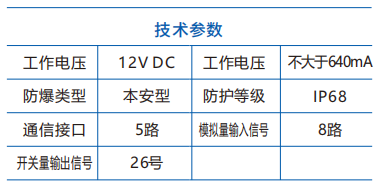

Technical parameters:
